Hi Blackview_Admin!

I´m here for asking help for our problem. The scatter file is not working. I tried the one that is named "MT6750_Android_scatter" and then I tried "常用工程指令" changing it name but still not working.

What should us do?

The folder Name still contain chinese letters on your screenshot. Please delete them.

It worked!

I deleted the chinese letters from the folder and then was fine. You only forgot to mention in the manual of the flash tool that we need to hold the volume + and volume - buttons when plugin the mobile to flash the new rom.

Thank you the support. Have a nice day!

lucasportela wrote:

It worked!

I deleted the chinese letters from the folder and then was fine. You only forgot to mention in the manual of the flash tool that we need to hold the volume + and volume - buttons when plugin the mobile to flash the new rom.

Thank you the support. Have a nice day!

Thanks for your kind feedback. I never needed to hold the keys but maybe it can help if other people also have problems with flashing.

Hi,

I'm trying to update bu flashing the latest firmware (Android 7) because my BV7000 pro died due to the 'doesn't charge problem' ( viewtopic.php?f=175&t=115474&start=10 ).

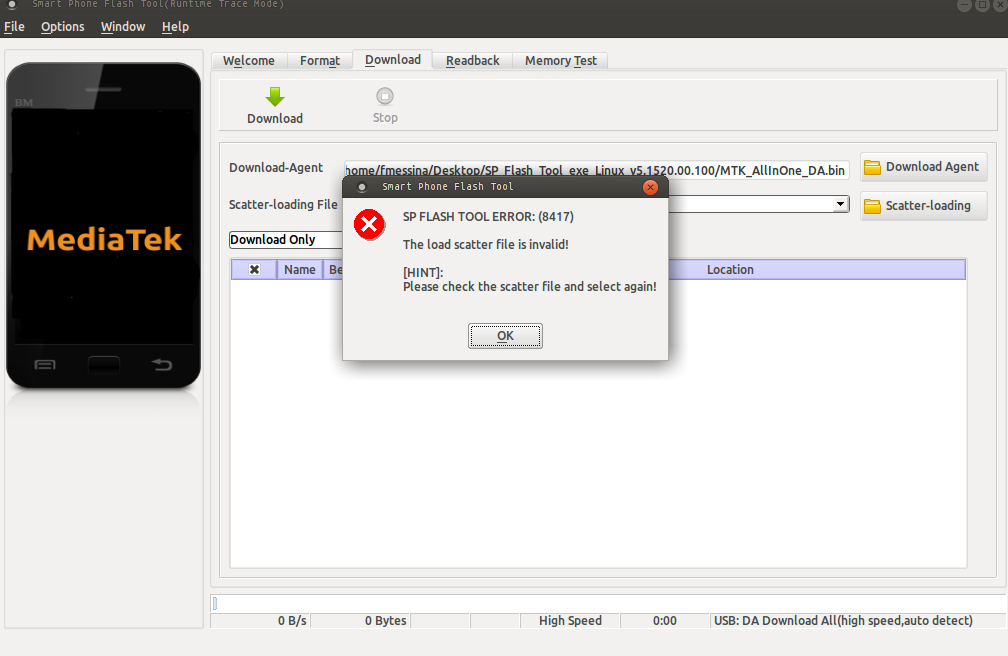

I downloaded flash_too for linux, but scatter file is not recognized.

I checked that there are not chinese chars in the path, I also tried to load the scatter file from /tmp but it doesn't work.

I also checked the content of the scatter file, it seems fine.

Could you please help me?



Here is a frame of the log of the SP flash tool (it seems some key in the scatter file are missing):

08/01/17 07:16:55.524 BROM_DLL[6054][6214]: DEBUG: LayoutConfigFileParser(): Layout file name(MT6750_Android_scatter.txt). (LayoutConfigFileParser.cpp:103)
08/01/17 07:16:55.524 BROM_DLL[6054][6214]: DEBUG: Parse(): m_config_file(/home/fmessina/Desktop/SP_Flash_Tool_exe_Linux_v5.1520.00.100/t725y-jk-bv7000-fhd-512g32g-3m-bom117-N-from-M_BV7000_PRO_Blackview_20170622_release/MT6750_Android_scatter.txt). (LayoutConfigFileParser.cpp:443)
08/01/17 07:16:55.588 BROM_DLL[6054][6214]: DEBUG: Parse(): get LAYOUT_SETTING_SKIP_PMT_OPERATE:yaml-cpp: error at line 7, column 7: key not found: skip_pmt_operate. (LayoutConfigFileParser.cpp:622)
08/01/17 07:16:55.588 BROM_DLL[6054][6214]: DEBUG: Parse(): get skip DL info option:yaml-cpp: error at line 7, column 7: key not found: skip_write_dl_info. (LayoutConfigFileParser.cpp:633)
08/01/17 07:16:55.588 BROM_DLL[6054][6214]: DEBUG: Parse(): get slc cell percent:yaml-cpp: error at line 7, column 7: key not found: slc_percentage. (LayoutConfigFileParser.cpp:645)

I'm using the SP flash tool for Linux 64 bit.

Many thanks for any help you can provide.

fabrizio979 wrote:

I'm using the SP flash tool for Linux 64 bit.

You can try an other version of flash tool or use a windows pc.
